ORIGAMI B1

The Minibike Origami B1 is designed and built for use on a paved closed circuit track. The track should be clean and without obstacles of any kind. Qualified adults and younger persons can drive the minibike. Children can drive the minibike only under the supervision of a responsible adult person. The minibike is constructed especially for racing competitions on special racing tracks.

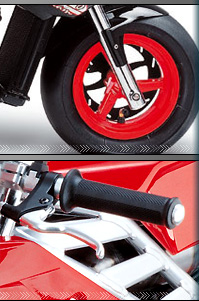

The minibike uses a single-cylinder two-stroke, Gasoline combustion engine, and has an air filter and exhaust silencer. Transfer of power to the rear wheel is through a drive chain. The the overall drive ratio to the rear wheel can be changed by the replacement of chain sprockets. The front and rear wheel is equipped with disk brakes. The rear brake is controlled with the left lever and the front brake is controlled with the right lever on the handlebars.

PRICE MSRP: $3,200.00


Download PDF Manual

The Blata Origami B1 series is available in 6 colors. Colorized wheels are sold as an accessory.
  BASIC TECHNICAL DATA
ENGINE:
Water-cooled two-stroke single cylinder engine
DISPLACEMENT:
39,8 cc
POWER:
10,5 kW at 12.300 rpm
TORQUE:
8,1 Nm at 12.000 rpm
CARBURETOR:
PHVA 17,5 Dell´Orto
EXHAUST:
KIT B1 MODEL 2002
IGNITION:
Contact-less
STARTING:
Pull start
CLUTCH:
Centrifugal automatic
FRAME:
High Tensile steel tubing (welded)
BRAKES:
front
disc brake - disc diameter 162 mm ( 6,3" )
rear
disc brake - disc diameter 119 mm ( 4,7" )
WHEELS:
front
light alloy 2,1" x 6.5"
rear
light alloy 2,3" x 6.5"
TIRES:
front
90/65 - 6,5"
rear
110/50 - 6.5" or 90/65 - 6.5"
FUEL:
Petrol 92 or higher Octane + 2-stroke synthetic oil (50:1)
FUEL TANK CAPACITY:
1 liter (0,26 US gal.)
WEIGHT:
25 kg ( 55 lb.) ( including stand 25,6 kg - 56,3 lb. )
WEIGHT INCL. PACKING:
30 kg ( 66 lb.)
MAXIMUM LOAD:
110 kg (242 lb.)
DIMENSIONS:
length
1100 mm ( 41" )
width
560 mm ( 22" )
height
550 mm (21,6" )
PACKING BOX DIMENSIONS:
length
110,0 cm (43,3" )
width
40,0 cm ( 15,7" )
height
58,0 cm ( 22,8" )
